Project Details
Client
Lactalis Group
Country
France
Industry
Manufacturing
Development Years
2024
Dynamic Checkweigher and Sorter
The Story
Groupe Lactalis S.A. is a French multinational dairy products corporation, the largest dairy products group in the world, with 266 production sites accross 51 counties, processing 23 bln liters of milk annually.
Precision: 0.5g
Speed: up to 120 products/min
Range: 0.1 to 50kg (per client specifications)

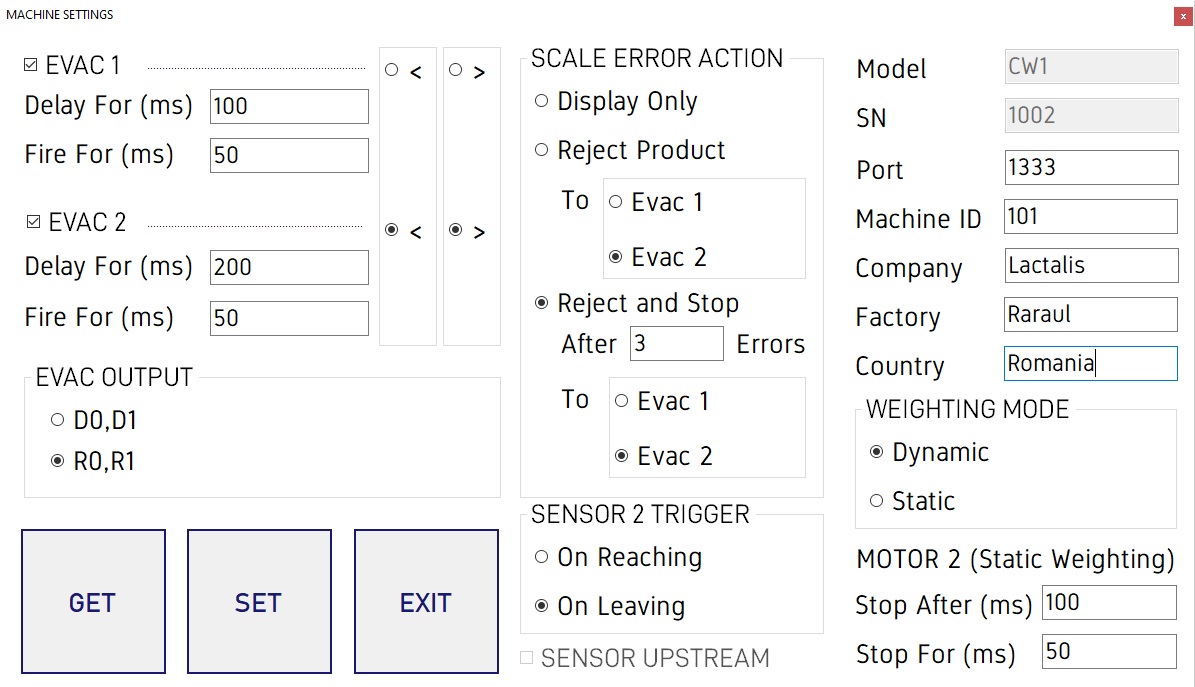

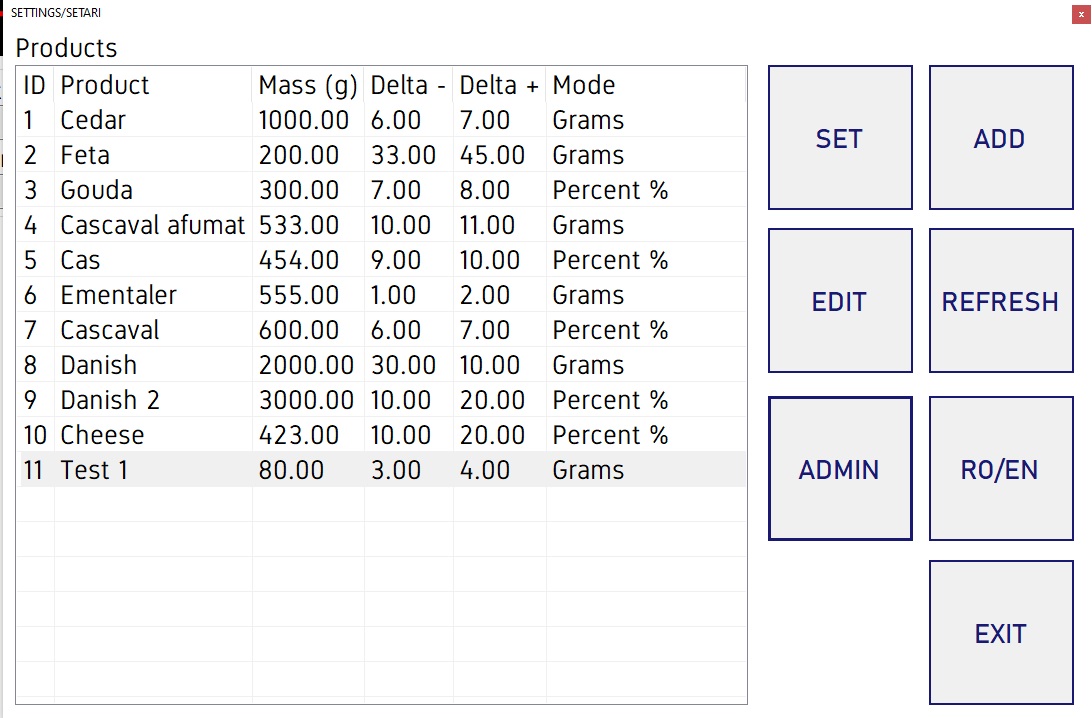

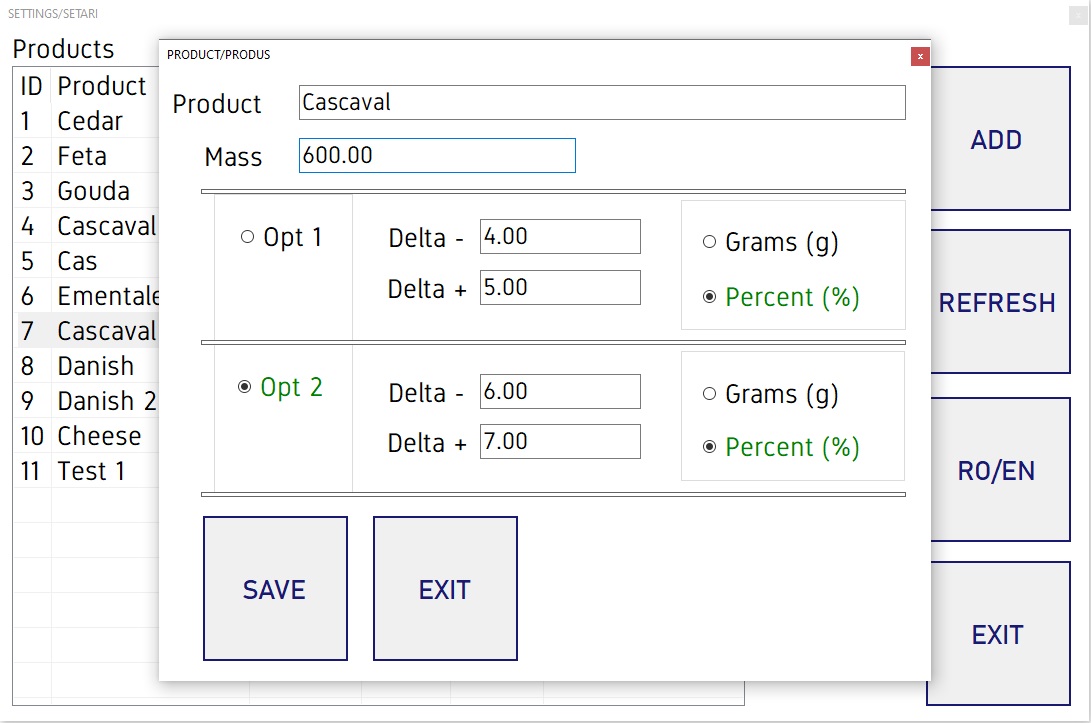

The system offers seamless configuration for an almost unlimited number of products, deviation margins, and weighing methods, either in grams or percentages. Users can customize motor speeds, operational rates, weighing modes (static or dynamic), and all actuation times, making the system highly adaptable to specific requirements.

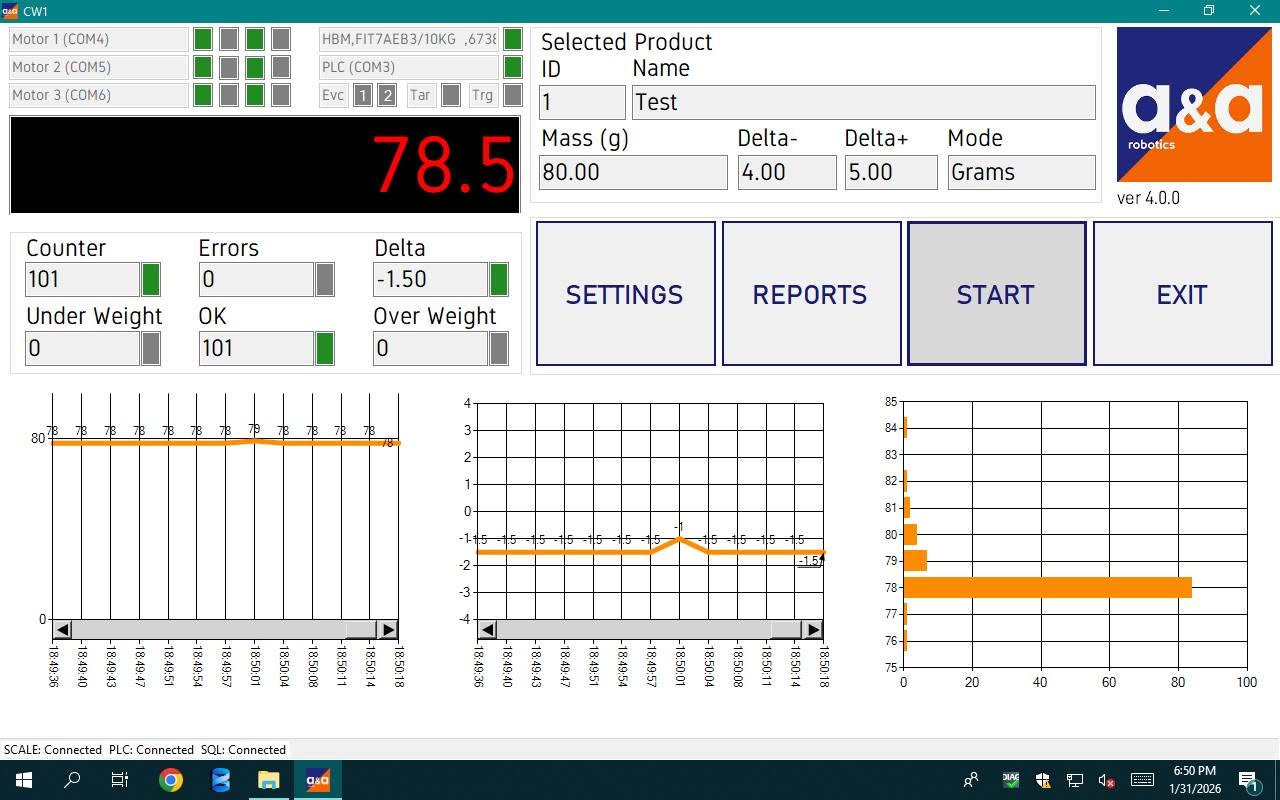

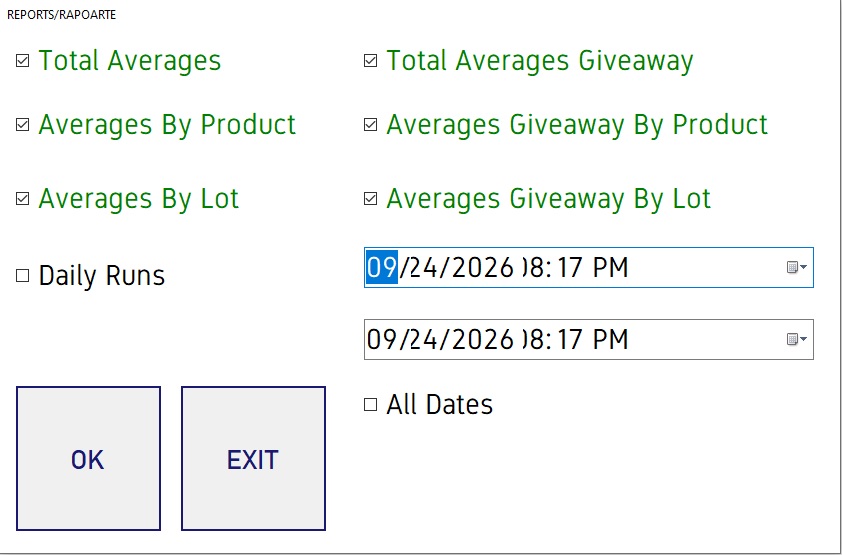

Weighing results, counts, and graphical representations such as histograms are displayed on the screen in real-time and can be saved for future analysis. Each lot's weighing data is stored in a local database. Activity reports consolidate and summarize results by batch, date, or product, with remote database access available for integration with ERP systems tailored to the company’s needs.
The system transmits weighing results in real-time via a serial port, providing data for upstream cutting machines to make precise adjustments. The interface supports easy language changes, with English and Romanian pre-installed and the capability to add other languages as needed.

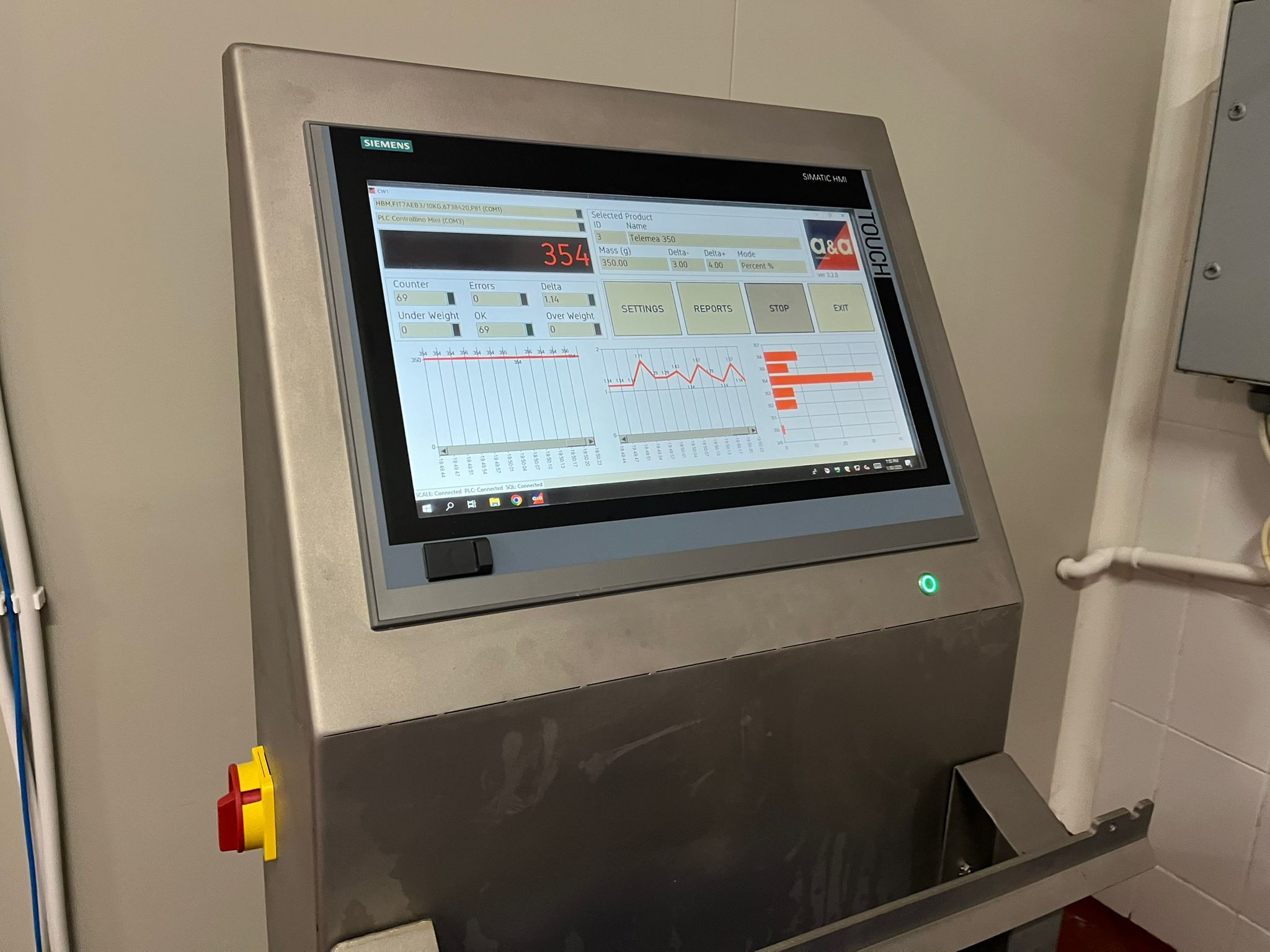

Real-time notifications for weighing errors and motor alarms are displayed for immediate action. Both the weighing cell and motor settings are adjustable through the manufacturer’s software. The system's intuitive touch screen interface ensures straightforward and efficient operation.
Real-time monitoring is possible over a local network or via the Internet, enhancing operational visibility and control.
Precision: 0.5g
Speed: up to 120 products/min
Range: 0.1 to 50kg (per client specifications)
The system offers seamless configuration for an almost unlimited number of products, deviation margins, and weighing methods, either in grams or percentages. Users can customize motor speeds, operational rates, weighing modes (static or dynamic), and all actuation times, making the system highly adaptable to specific requirements.
Weighing results, counts, and graphical representations such as histograms are displayed on the screen in real-time and can be saved for future analysis. Each lot's weighing data is stored in a local database. Activity reports consolidate and summarize results by batch, date, or product, with remote database access available for integration with ERP systems tailored to the company’s needs.
The system transmits weighing results in real-time via a serial port, providing data for upstream cutting machines to make precise adjustments. The interface supports easy language changes, with English and Romanian pre-installed and the capability to add other languages as needed.
Real-time notifications for weighing errors and motor alarms are displayed for immediate action. Both the weighing cell and motor settings are adjustable through the manufacturer’s software. The system's intuitive touch screen interface ensures straightforward and efficient operation.
Real-time monitoring is possible over a local network or via the Internet, enhancing operational visibility and control.
This advanced dynamic scale is designed for weighing food products transported on industrial belts, offering both dynamic and static weighing options. In static mode, the belt can pause during weighing for exceptional precision, achieving accuracy to a tenth of a gram for very small masses. During dynamic operation, the scale maintains a maximum error margin of just 0.5 grams.
The system is adaptable to meet various processing requirements, accommodating products weighing up to 10 kg. Conveyor belt lengths are customized based on product dimensions, ensuring optimal operation. The belts, specifically designed for food contact, are easily removable without tools, allowing for thorough and efficient cleaning of the underlying areas.
Equipped with a C4-range precision weighing cell, the system can process up to 120 products per minute. It supports extensive data storage, capable of memorizing over 1,000 product configurations and recipes. Additionally, its integrated hard drive stores large volumes of data, enabling detailed reporting and statistical analysis by batch and workday. These insights can assist in optimizing upstream processes for better weight consistency.
Constructed to comply with stringent food industry hygiene standards, the system features materials specially approved for food contact. The conveyor belts are food-grade, the stainless steel components are tailored for hygienic applications, the aluminum is anodized for chemical resistance, and all plastics meet food safety regulations. This dynamic checkweigher and sorter exemplifies precision, adaptability, and compliance, making it a robust solution for industrial food processing needs.
Dynamic Checkweigher and Sorter made by A2 Robotics a joint venture of AutoMates ACM and Absolute Incorporated.
The system is adaptable to meet various processing requirements, accommodating products weighing up to 10 kg. Conveyor belt lengths are customized based on product dimensions, ensuring optimal operation. The belts, specifically designed for food contact, are easily removable without tools, allowing for thorough and efficient cleaning of the underlying areas.
Equipped with a C4-range precision weighing cell, the system can process up to 120 products per minute. It supports extensive data storage, capable of memorizing over 1,000 product configurations and recipes. Additionally, its integrated hard drive stores large volumes of data, enabling detailed reporting and statistical analysis by batch and workday. These insights can assist in optimizing upstream processes for better weight consistency.
Constructed to comply with stringent food industry hygiene standards, the system features materials specially approved for food contact. The conveyor belts are food-grade, the stainless steel components are tailored for hygienic applications, the aluminum is anodized for chemical resistance, and all plastics meet food safety regulations. This dynamic checkweigher and sorter exemplifies precision, adaptability, and compliance, making it a robust solution for industrial food processing needs.
Dynamic Checkweigher and Sorter made by A2 Robotics a joint venture of AutoMates ACM and Absolute Incorporated.
